Kerdi-Drain 2"/Classic 4" Stainless Steel

Schluter-KERDI-DRAIN
Point drain with integrated bonding flange

Schluter-KERDI-DRAIN is a shower drain with an integrated bonding flange that provides a large contact area for a secure connection to the KERDI waterproofing membrane at the top of the assembly.
Grate available in a wide range of finishes and colors in stainless steel or anodized aluminum, as well as a tileable option
Available in five stylish designs: FLORAL, CURVE, PURE, CLASSIC, and CONTOUR
Integrated sloped bonding flange available in ABS, PVC, or stainless steel allows for a secure, topical waterproofing connection
ABS and PVC flanges have a 2" or 3" outlet
Stainless steel flange has a 2" or 3" no-hub outlet or a 2" threaded outlet
Drain grate can be laterally adjusted to fit the layout of the tile grid and leveled to the tiled surface
Accommodates wide range of tile thicknesses: 1/4" (6mm) to 1-1/4" (32 mm)
Tamper proof screws and wrench also available.

KERDI-DRAIN ABS 2" / CLASSIC 4" STN STEEL
Product Code: KD2/ABS/E

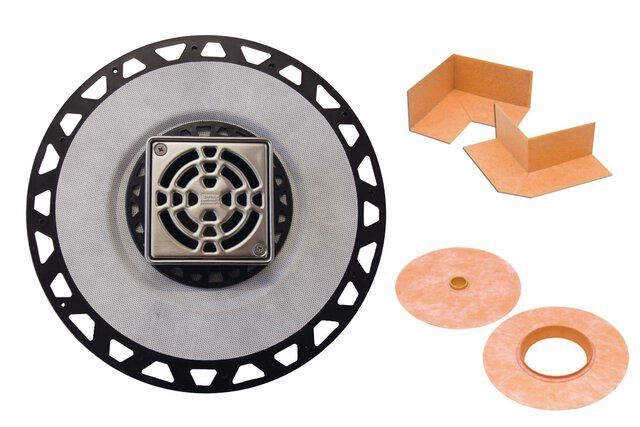

This kit includes:
1 drain body with integrated bonding flange (ABS with 2" outlet)
1 grate assembly (4" square stainless steel grate and ABS adjustment ring)
4 inside and 2 outside KERDI-KERECK preformed waterproofing corners
1 KERDI-SEAL-PS pipe seal 3/4"
1 KERDI-SEAL-MV mixing valve seal 4-1/2"

KERDI-DRAIN PVC 2" / CLASSIC 4" STN STEEL
Product Code: KD2/PVC/E
This kit includes:
1 drain body with integrated bonding flange (PVC with 2" outlet)
1 grate assembly (4" square stainless steel grate and ABS adjustment rings)
4 inside and 2 outside KERDI-KERECK preformed waterproofing corners
1 KERDI-SEAL-PS pipe seal 3/4"
1 KERDI-SEAL-MV mixing valve seal 4-1/2"
