Kerdi-Line-A 5-1/2" Adaptor Ring

Adaptor kit converts clamping ring drains to an integrated bonding flange for linear drain

The Schluter-KERDI-LINE-A adaptor kit is designed to convert clamping ring drains by equipping them with an integrated bonding flange to work with KERDI-LINE linear drains.
Adaptor kits are used when the clamping ring drain cannot be removed

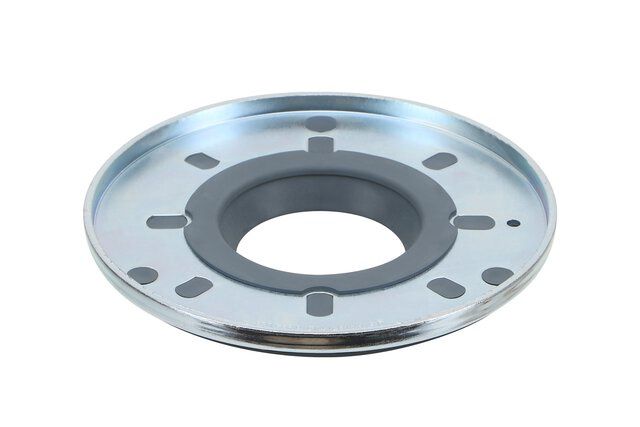

Kit includes a steel adaptor ring with an over-molded rubber gasket and a variety of perforated hole patterns that align with most common clamping ring shower drains
The adaptor ring replaces the clamping ring and is attached to the drain body using the clamping ring bolts
Connection is made watertight via the rubber gasket and KERDI-FIX adhesive/sealant
Suitable for both KERDI-SHOWER-LT/-LTS shower tray and mortar bed applications

Don’t forget! The KERDI-LINE grate kit must be selected separately.

This kit includes:
1 5-1/2" adaptor ring
1 tube of KERDI-FIX sealing and bonding compound (100 ml) for single set

and

10 5-1/2" adaptor rings
10 tubes of KERDI-FIX sealing and bonding compound (100 ml) for set of 10
